About the Project

Jones Sign provided Design Assist Services for this Mortenson/Clark Joint Venture. Our role was to provide fabrication and installation of the interior and exterior signage packages at Chase Center for the Golden State Warriors.

  • Project Type
    Large Scale Custom Projects
  • Services
    Design Assist
  • INDUSTRY
    Jones Sports Venues
  • Location
    San Francisco, CA

Project Elements

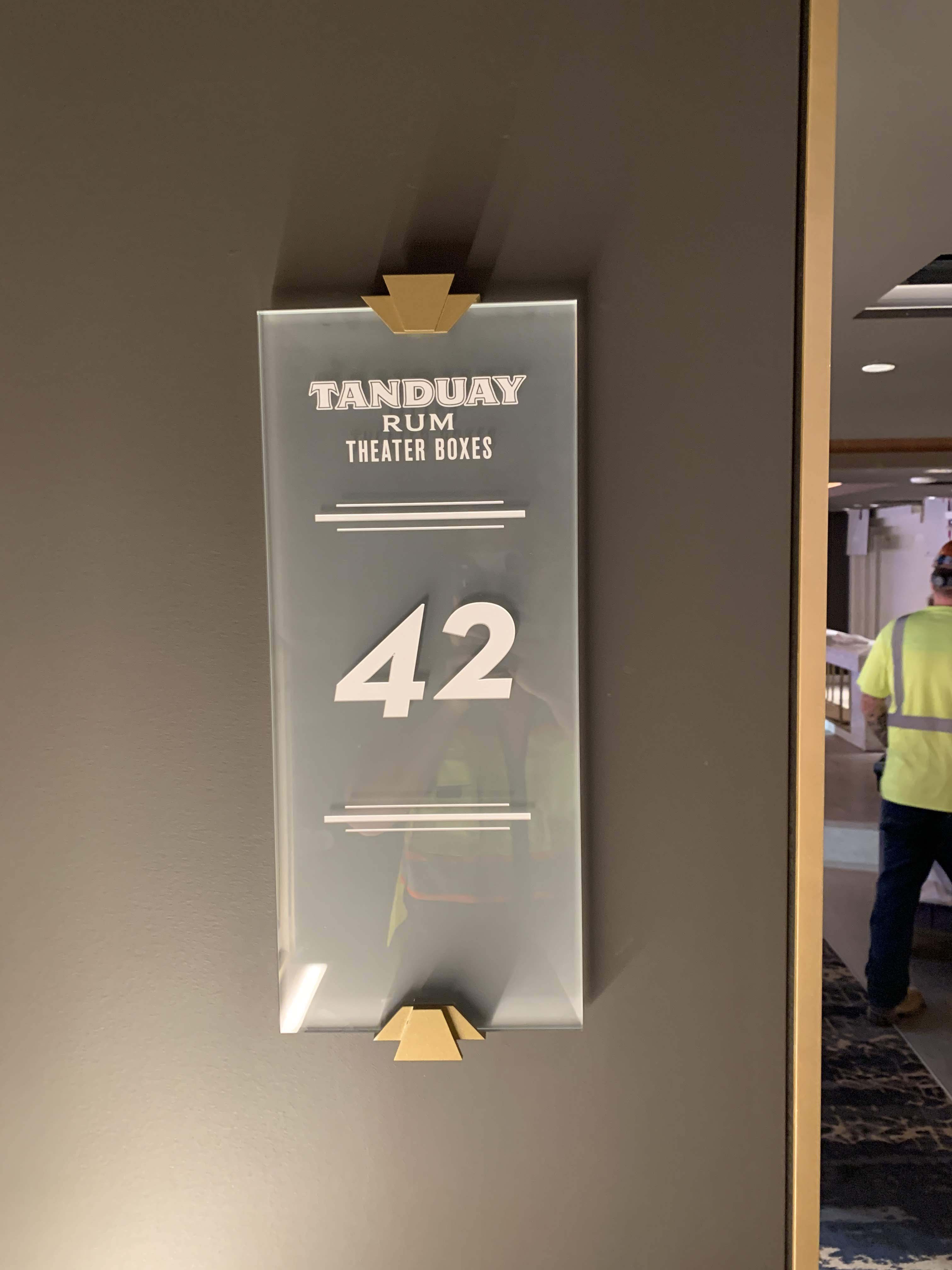

  • Interior Signage
  • Exterior Signage
  • Roof Channel Letters

Services Rendered

  • Design Engineering
  • Permitting/Fire Code Review
  • Installation
01

The Challenge

Jones was contracted to fabricate and install all interior and exterior signage packages at Chase Center in San Francisco. This included designing the attachment methods to integrate Chase brand signage into the glass curtain wall and of the 47-foot high letters on the roof. Installing a sign this large on the rooftop of an arena comes with the challenges of finding the precise attachment points on the steel underneath the roof membrane and decking.

02

The Solution

Jones Sign used three dimensional scanning technology to locate the points on the steel truss system to which the 187 outriggers would be welded. It also marked the points on the roof membrane Jones Sign needed to penetrate. Throughout the project, Jones Sign worked closely with the State Fire Marshal to ensure that each phase was reviewed and approved prior to moving on to the next stage. We maximized project timelines through quick starts, modular construction, and a proactive approach.

03

The Result

This technology increased the speed of delivery of our construction drawings and saved hundreds of hours of installation time.
